1-3/4" Length | 2" Dia. | Round | Fascia Mount Double Standoff | Alloy 316
1-3/4" Length | 2" Dia. | Round | Fascia Mount Double Standoff | Alloy 316
Regular price
$204.61
Regular price
Sale price
$204.61
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description:
Description:

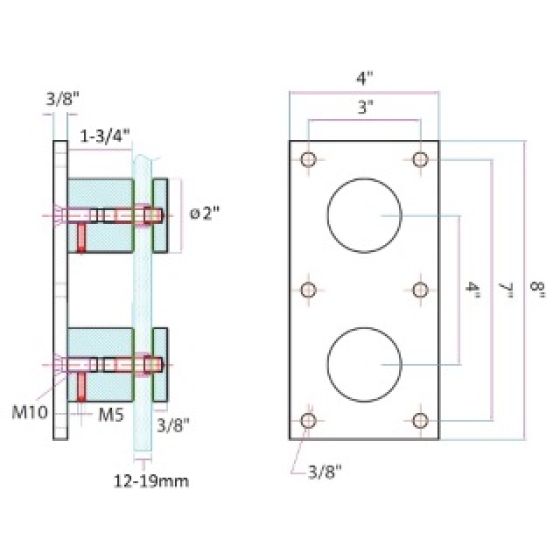

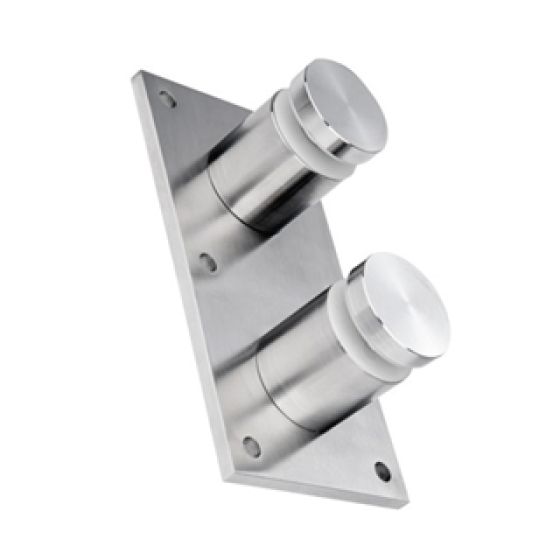

1-3/4" length - 2" diameter, round, fascia mount double standoff, suits 12mm (1/2") to 19mm (3/4") glass in alloy 316 stainless steel, #4 satin finish.
- The double standoff gives you the option of installing with the mounting plate visible or concealed
- Standoffs are mechanically fastened to the mounting plate
- Supplied with UV resistant white silicone gaskets and grommets
- Engineering Report
- Meets AISI steel grade designation
- Alloy 316 for indoor/outdoor use (refer to the metal usage guide)
- A minimum of two double standoffs per panel is required
- Pre-drill a ø 3/4" hole in glass for grommet and fastener. Drill hole can't exceed ø 1.02"
- Holes in base are drilled for ø 3/8" bolts or anchors
- A rubber strap wrench (supplied by others) may be used to tighten the caps
Features:
Features:
- Part Number(s): 6905
- Brand: Bezdan Stainless
- Product Type: Standoffs
- Material: Stainless Steel
- Alloy: 316
- Finish: #4 Satin
- Finishing Process: Brushed
- Glass Size (T): 12 - 19mm
- Holes to Wall: 6
- Certification: Meets AISI steel grade designation
- Weight (lbs): 6.55
- Diameter: 4"
